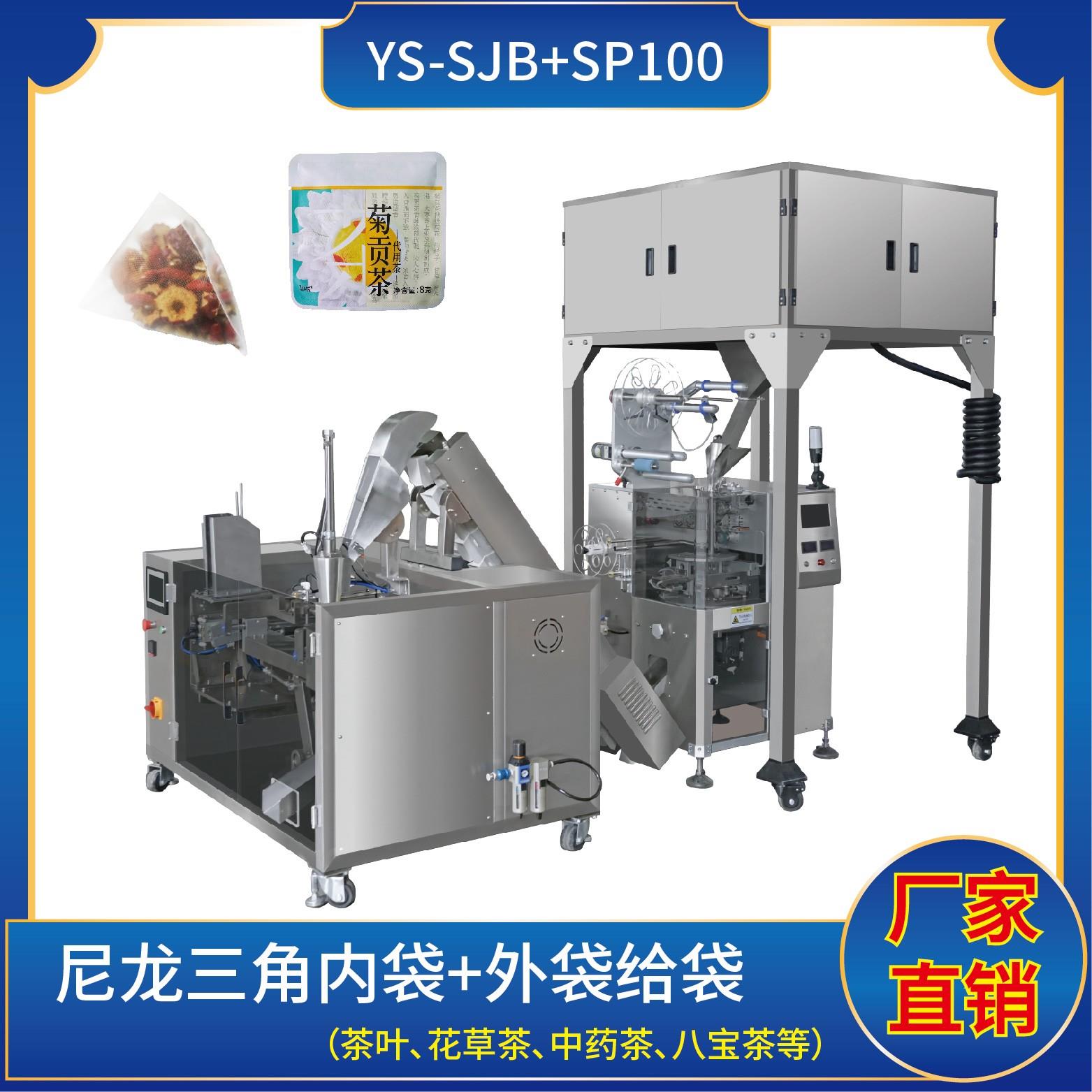

YS-ZF90X-SP100尼龍三角袋+外袋給袋機
Nylon triangle inner bag packing machine+automatic bag filling and sealing machine（outer bag）
YS-ZF90X+SP100 三角內袋+外袋給袋包裝機
特 點 Characteristic
1、適用于綠茶、紅茶、花茶、咖啡、中國茶、健康茶、中藥茶、顆粒等內外袋一次性包裝。
This machine is suitable for dual bag packing for small granular materials,such as green tea,black tea,scented tea,coffee,Chinese tea,health tea,herbal tea,granule and so on.
2、內袋為平面袋包裝、三角立體包裝等形式。外袋為給袋式包裝，封口效果好，袋型美觀。
The inner bag is in the form of flat bag packing, triangular three-dimensional packing, etc. The outer bag is packedin the bag type, with good sealing effect and beautiful bag shape.
3、整機可自動完成下料、計量、制袋、封口、切斷、計數、成品輸送等功能。
The machine can automatically complete the feeding, measuring, bag-making, sealing, cutting, counting, finished product transportation and other functions.
4、選用先進超聲波封口，電子稱計量下料方式，封口牢固，下料準確。 Adopt the advanced ultrasonic sealing,use the electronic scale metering to cutting-stock,perfect sealing,cutting-stock accuracy.
5、包裝材料：尼龍、無紡布、玉米纖維、復合膜等（預制袋）。
Packaging materials: nylon, non-woven fabric, corn fiber, composite film, etc. (prefabricated bags).
技術參數
Technical Parameters
計量范圍：1 - 10g
Measuring Scope
外袋尺寸：長 ( L ) ：75 - 130mm
Inner bag size 寬 ( W ) ：60 - 120mm
內袋尺寸：長 ( L ) ：45 - 90mm
Outer bag size 寬 ( W ) ：40 - 90mm
包裝速度：20-40 bags/min
Packing Speed
外型尺寸：1480*2716*2159mm
Dimension ( L * W * H )
整機重量：800 kg
Weight
總 功 率：AC220V / 50-60Hz / 5kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于綠茶、紅茶、花茶、咖啡、中國茶、健康茶、中藥茶、顆粒等內外袋一次性包裝。
This machine is suitable for dual bag packing for small granular materials,such as green tea,black tea,scented tea,coffee,Chinese tea,health tea,herbal tea,granule and so on.
2、內袋為平面袋包裝、三角立體包裝等形式。外袋為給袋式包裝，封口效果好，袋型美觀。
The inner bag is in the form of flat bag packing, triangular three-dimensional packing, etc. The outer bag is packedin the bag type, with good sealing effect and beautiful bag shape.
3、整機可自動完成下料、計量、制袋、封口、切斷、計數、成品輸送等功能。
The machine can automatically complete the feeding, measuring, bag-making, sealing, cutting, counting, finished product transportation and other functions.
4、選用先進超聲波封口，電子稱計量下料方式，封口牢固，下料準確。 Adopt the advanced ultrasonic sealing,use the electronic scale metering to cutting-stock,perfect sealing,cutting-stock accuracy.
5、包裝材料：尼龍、無紡布、玉米纖維、復合膜等（預制袋）。
Packaging materials： nylon, non-woven fabric, corn fiber, composite film, etc. (prefabricated bags).
技術參數
Technical Parameters
計量范圍：1 - 10g
Measuring Scope
外袋尺寸：長 ( L ) ：75 - 130mm
Inner bag size 寬 ( W ) ：60 - 120mm
內袋尺寸：長 ( L ) ：45 - 90mm
Outer bag size 寬 ( W ) ：40 - 90mm
包裝速度：20-40 bags/min
Packing Speed
外型尺寸：1480*2716*2159mm
Dimension ( L * W * H )
整機重量：800 kg
Weight
總 功 率：AC220V / 50-60Hz / 5kw
Total Power
氣 源：≥0.6Mpa
Gas source
適用于綠茶、紅茶、花茶、咖啡、中國茶、健康茶、中藥茶、顆粒等內外袋一次性包裝。
